Turn signal switch smoking

[djw]

I have the JW Speakers and all the bits to do a swap on mine sitting in the garage awaiting a peaceful day without interruptions to do the conversion.

This is on an Austrian rehab pinz with the big TD 5-segment lights, so I am anticipating some fun along the way completing this project. These will look similar, albeit better than the giant TD lights.

[newtopinz]

It is not stock but I think the looks really fits the truck. Boxy truck with boxy lights, also functional.

DJW, You should do it soon, and document it so I can follow someone else's lead. Take pictures too if you can.

[djw]

You should do it soon, and document it so I can follow someone else's lead. Take pictures too if you can.

I wish I had a lot of free time, but it doesn't work out that way these days. It's been on my list for a month and will hopefully get done within the same future window.

Alas.

[rmel]

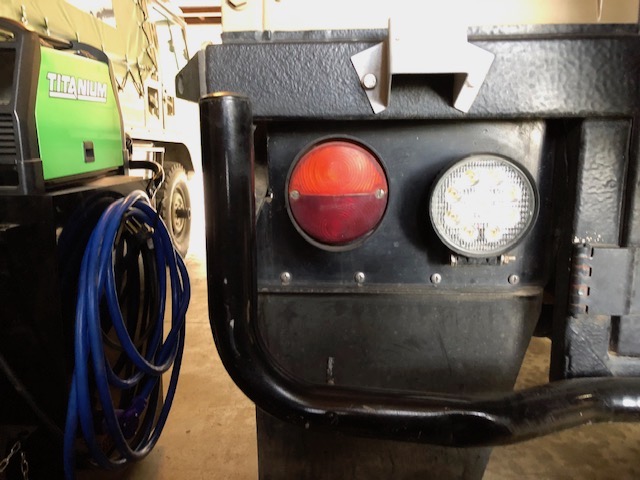

I made a taillight conversion about 8 years ago, sticking with the
stock Taillight housing, adding a dedicated flood backup light,
splitting the functions out separately. The backup flood is very
helpful on the trail for obvious reasons. Pix attached.

Don't ask, long forgot how I re-used the existing wiring harness.
That said I have to figure it out again as the same conversion is
slated for the 712. Though that rig has a long list of to-do's before
that conversion.


[Hotzenplotz]

The "cheeseburger style " rear lights are available as LED based units, too



available online at https://www.westfalia-versand.at/shops/ ... nd-led.htm

apologies for the oversized pic

[newtopinz]

I ended up with the non led cheeseburger style lights and a new switch. It is cheaper, and ultimately I think I want the speaker 265, just got to wait until they come up again and on sale. It's out of stock on headlight revolution.

Thanks for the input guys.

Kelvin.

[pohlease]

I ended up with the non led cheeseburger style lights and a new switch. It is cheaper, and ultimately I think I want the speaker 265, just got to wait until they come up again and on sale. It's out of stock on headlight revolution.

Thanks for the input guys.

Kelvin.

I got the last one headlight revolution had. Of course I need two and the second one is on backorder. They won’t respond to emails. They’ve been growing faster than they can keep up.


Sent from my iPhone using Tapatalk

[newtopinz]

Anyone has the austrian wiring schematics? or atleast wiring schematics for their turn signal switch?
I'm trying to understand what is lost when converting to the 5 wire austrian turn signal switch. I understand there are three wires left after connecting the same colored ones of the swiss switch. One is left alone, but the other two is connected to the ones with a 3 wire connectors. I believe this is to connect the front and rear same side turn signals together?

I was thinking, the 5 wires would be ground, high beam, left turn signal, right turn signal, and a connection to the hazard switch?

I'm gearing up to do the conversion in a couple of days and trying to get things ready. I am planning to use the pink wire for brake light, and i have the non LED cheeseburger style lights.

Anyone with any tips for this conversion would be greatly appreciated.

[pcolette]

These may help:

Turn Signal Switch Wiring.pdf

(30.93 KiB) Downloaded 369 times

Turn Signal Switch Austrian.pdf

(32.79 KiB) Downloaded 375 times

[newtopinz]

YES!!!!
Super helpful and confirmed my suspicion. Thanks so much Pcolette
