This looks like it's heading in the right direction, nice work! I love those hardtops...wish I could find them stateside!

[63rover]

Looks like the conversion is coming along very nicely. I just noticed that you are planning to put your lithium batteries on the floor near the transmission access plate. I have noticed that cargo on the floor in that area gets quite hot from the proximity to the exhaust, heater, etc.. You may find some insulation to be necessary or even relocation of the batteries. I would hate to not mention it and hear that something unpleasant happened. Good luck with the project! -Cheers!

[Hugues]

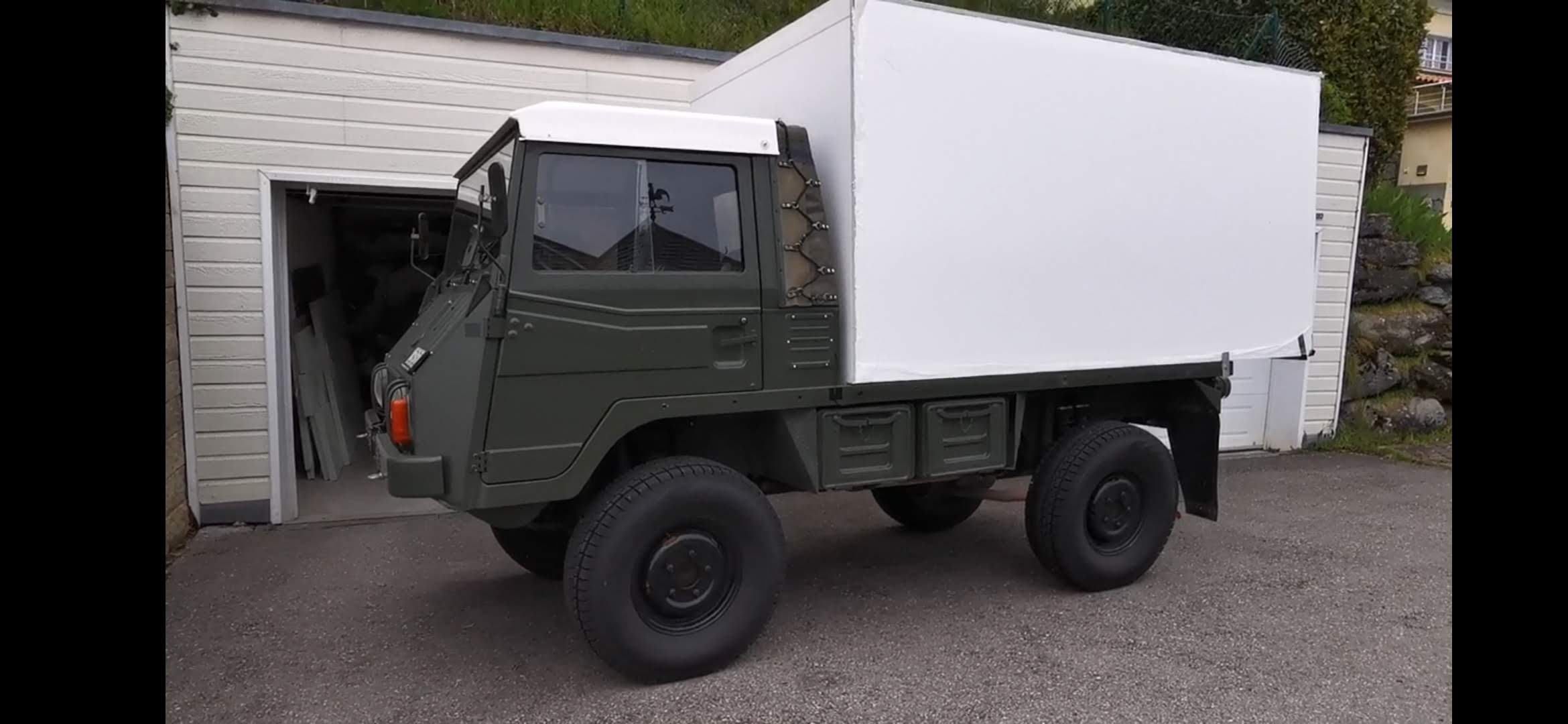

Box mounted on Pinz
Same weight as the tarp and structure I removed, so net weight gain = 0

https://youtu.be/sDy6xW7xUP8

box on Pinz.jpg (137.2 KiB) Viewed 8914 times

[Hugues]

Looks like the conversion is coming along very nicely. I just noticed that you are planning to put your lithium batteries on the floor near the transmission access plate. I have noticed that cargo on the floor in that area gets quite hot from the proximity to the exhaust, heater, etc.....

Thanks for pointing this out.
The floor is insulated around the battery. And I planned for a ventilation of the electric box (which connects to the battery box) so I can remove excess heat. I see my battery can handle discharge up to 60C. But good to know. I'll probably build an extra air gap. Thanks.

[Hugues]

I've been posting update on 3 different forums,
that's a bit much,
you can find my latest update on this thread:
https://expeditionportal.com/forum/thre ... ad.237457/

[Hugues]

Short update
my build channel on youtube:
https://youtube.com/playlist?list=PLA_n ... bJsyJ7DOib




[Hugues]

Received my fuel bladder
And the transfer pump
In the end I will have 180+ liters of fuel


And my latest video on my build channel
https://youtu.be/QDcgcYCwQE8?si=qQw9B41fbAjGmRgb

[compunerdy]

Coming along nicely.

[eric1355]

Hello Hugues

Shouldn't you line the walls of your housing with a carpet or PVC tiles, for example?
to avoid excessive abrasion of the TPU of your tank on the aluminum of the box.
watch out for protruding rivet heads

irrelevant
if you had already planned it!

congratulations again on the progress of your layout

Eric

[Hugues]

Salut Eric

Good questions. I have not used rivets but low profile round screws which the head inside the box. Then I covered the heads with EPDM or foam tape.

Now, the aluminium sheet on the inside is flat and smooth. I'm not sure there will be a lot of abrasion on the PU. Maybe I can grease the contact surfaces, or put anti abrasion tape? The bladder once full is very snug inside the box, so there will be only small movements possible between the PU and the walls. I filled it with water now to test, I will then inspect it regularly.
