Any 710 owner with a tape measure!

[junglefever]

Hello all Pinz people. I am hoping someone with a 710 soft top can help with something quite simple and will help me avoid a costly mistake. I am in need of some quick measurements of a 710. I am going to put lettering and logos on the side of my rig used for big cat research in Africa but I don't dare order the lettering and decals without knowing the max sizes I can use. I am in USA and my Pinz is impatiently awaiting my return to Africa. Can anyone help? I have included a photo with some mark ups to show what measurements I need. All color coded so easy to get it right. Any help would be greatly appreciated.

[Heinkeljb]

Sorry not able to help with any measurements - I own Haflinger! I would just like to point out that there is no attached photo therefore, no one knows what measurements you want.

John

[junglefever]

Thanks John.. I am working on it. Didn't realize it did not attach.

[Hugues]

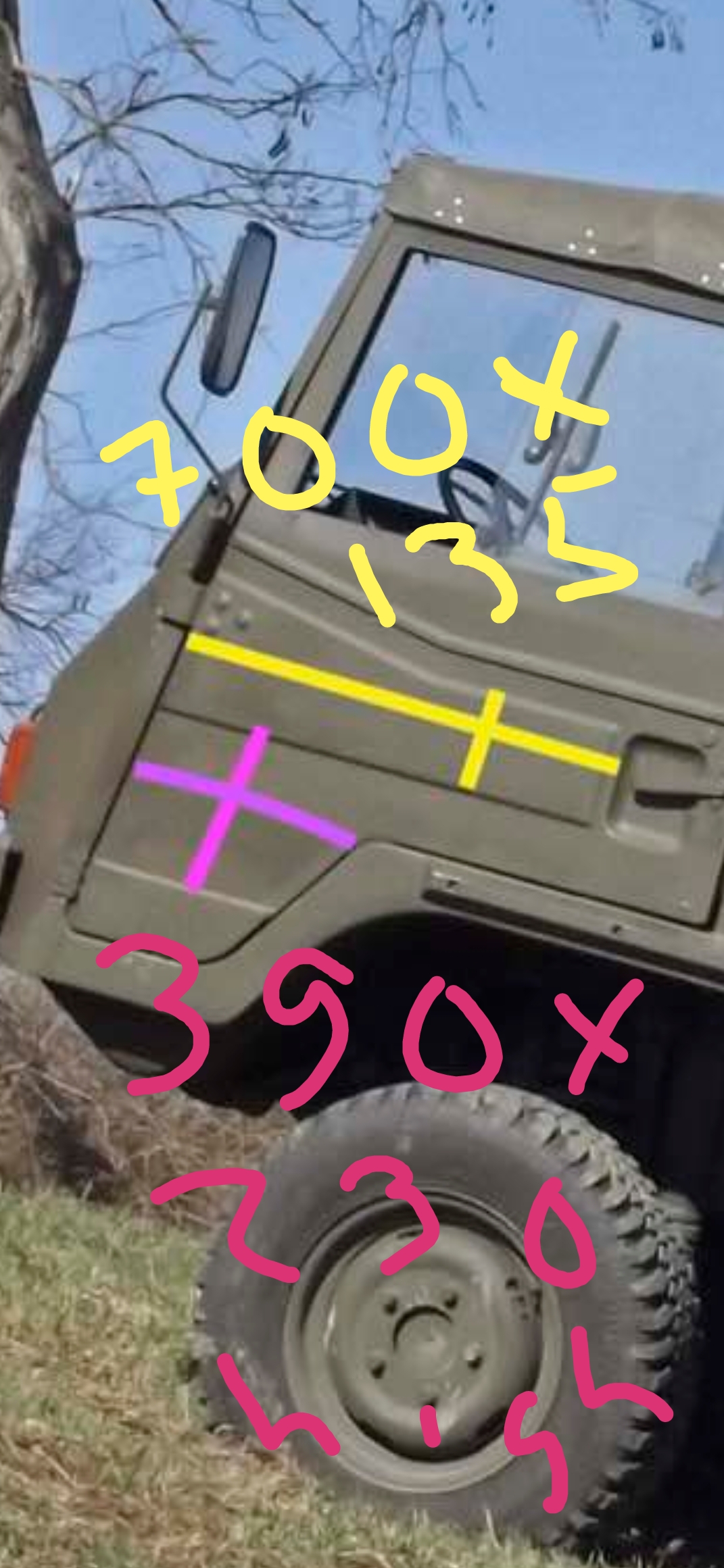

I can give you the front measures,
In mm 700x135 mm high
390 x 230 mm
Measured on the flat part, without bevels

I don't have my rear panels anymore, I have a box


[junglefever]

Hugues...Thanks for the response. Thats a good start...

cheers
