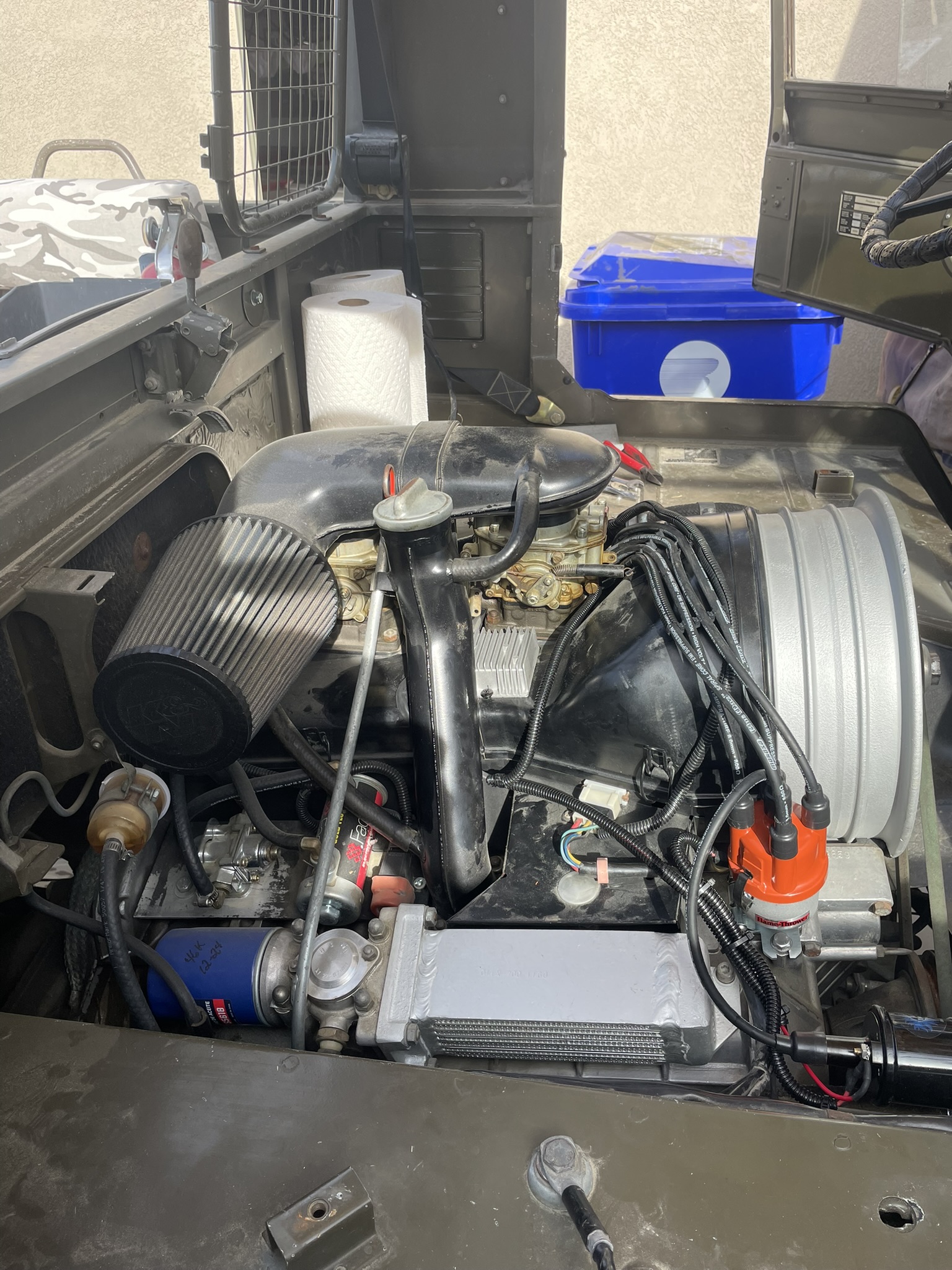

The newest and finest aftermarket Pinzgauer ignition system is now available for purchase online! Check it out at www.pinztronix.com .
This is a complete system that includes everything you need, and no drilling or modifications to the vehicle wiring required.
Similar to a waste spark system, this ignition fires more than once during the power stroke. Plugs are gapped at .060.

https://youtu.be/bLE3a7y2G9k

https://youtube.com/shorts/yEfXMgaoIX8

https://youtube.com/shorts/Vd0tnodJGOI

Well Rick, back at it again !! That's great news and this looks like a
real slick integration of key components and a no fuss installation.

What'cha gonna do with your REMOVED PinzSSI ? I'm still running
mine and with a MERV 16 cover over the module to keep the damn
dust out

cheers

I removed the PinzSSI to see how this ignition would work, and pulled my Pinz off the market the same day, the difference was that significant. My old PinzSSI 4.2 works perfectly and includes a filter, and has maybe 100KM on it at most.

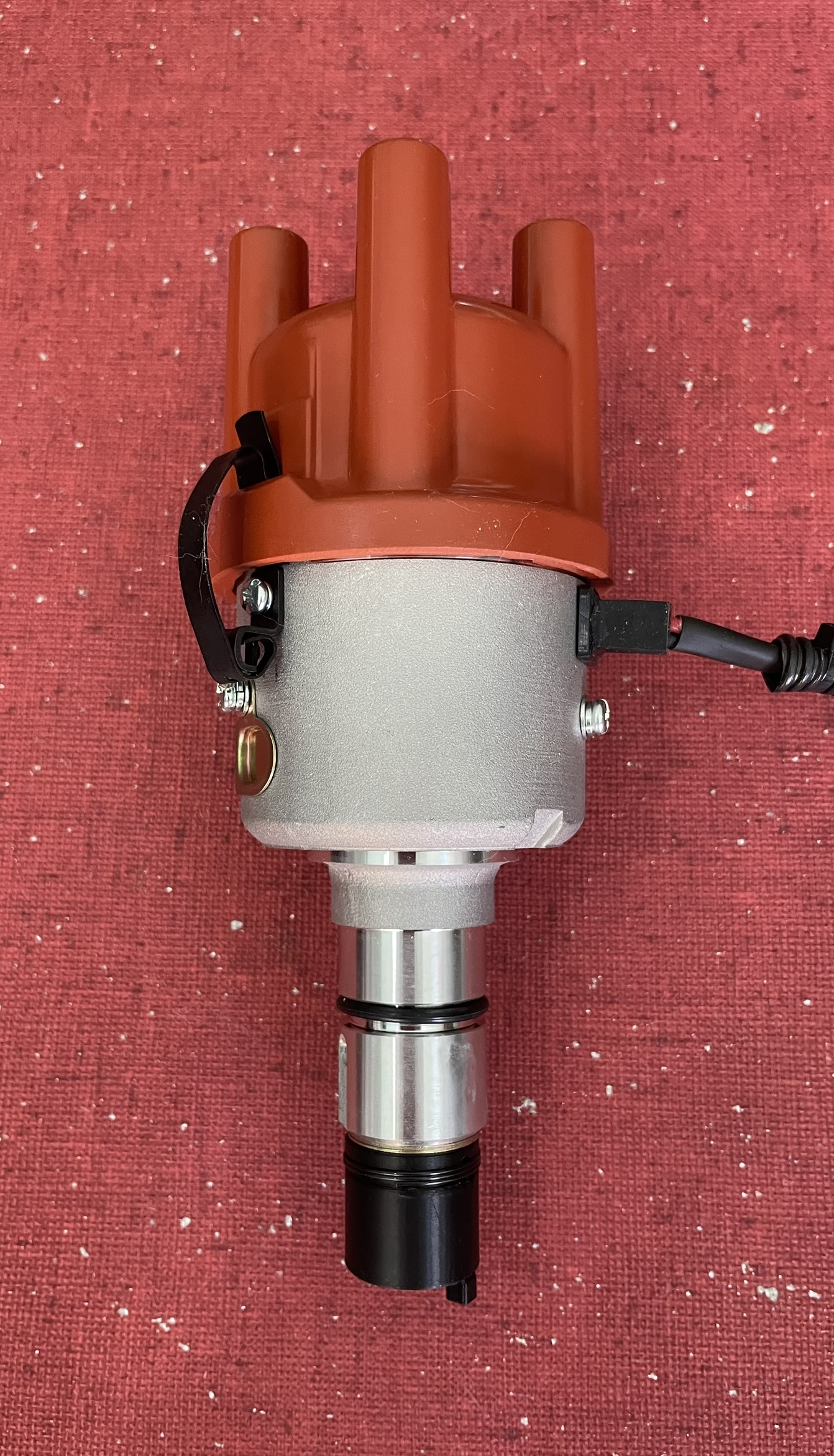

Adapting a Pertronix distributor to the Pinzgauer was the main hurdle, but I finally got that covered. I also use Pertronix wires so all componants match electrically. A good DC filter might be recommended on the power input side.
Contact me via messenger if interested, I will give you a deal.

I think? this is good news in that there now seems to be a potential alternative to my PinzSSI if it ever fails me. And it is pretty remarkable that it could be better than a PinzSSI in performance. In my opinion that would be hard to beat. It looks like Ron beat me to the question about the used unit. Thanks to Pinzinator for all he has done to help the ignition issues of our vehicles and I am hopeful this makes up for the loss of PinzSSI.

Ya, Keith, I agree. Hard to beat the precision and features of a PinzSSI.
Optical trigger is far more precise than Hall effect, and there are up to 4
selectable timing profiles each customizable -- if you have the Software
and cable to do so. That said, the optical trigger is also a negative with
the potential of dust ingress to foul up the sensor -- been there done that
That's why I shroud the cap with MERV 16 fabric.

The other disadvantage is it's essentially a EOL product but a few
of us are persistent and keep "triggering" on with this PinzSSI.

I agree with Ron that the optical trigger should be more accurate, but there's also the argument that a Hall Effect is just as good. I'm not taking sides on this debate.
Dust could be a problem with the optical lens on the PinzSSI, that was a flaw. Using a DC filter may have also prevented dirty voltage, I don't know.
The vast majority of PinzSSI ignitions dating back to 2014 are still out there running.
Pinztronix is the most modern ignition technology adaptable to the Pinzgauer using the Flamethrower III module and matching coil.
I replaced the coil and module inthe HEI ignition with Pertronix III in my '83 Olds with great results. The Flamethrower III fires multiple times, like a waste-spark system. This may help it pass California smog restrictions, too.
My '65 Olds has had Pertonix since 1998 without a miss.

I am definitely interested


Sent from my iPhone using Tapatalk

I have 5 left in stock.
