The pictures of completely overhauling/rebuilding your truck are a great inspiration. Terrific job (including the paint job) :-)



Fooling around today with a rattle can paint job while waiting for more parts to arrive.


That paint scheme looks vaguely familiar 🤔... I ...

Fooling around today with a rattle can paint job while waiting for more parts to arrive.

Here are some of my wiring notes that might help you. Also I've attached a .PDF of the color wiring schematic I've used on my K.
Also, I modified the original taillights to be US standard and support dual-filament bulbs.
I found these https://a.co/d/0ai9mbex to make excellent back-up lights. No ...

rmel wrote: Mon Mar 02, 2026 3:49 pm There is very little difference between the color schematic and a K.

However, I do have a K schematic (Funkkommandowager) I can email you
if your interested.

I have a black-and-white 710K schematic from the forum. But thank you for the offer.

Mr Zero wrote: Mon Mar 02, 2026 1:50 pm I hate to be the bearer of bad news, but you’ve planted Vault Boy exactly where your future GPS speedo antenna puck is going to live. Really hoping he’s on a mag mount… otherwise he’ll have to get evicted.

Ha Ha, good call. And yes, he is magnetic.

Still sorting out the tail light wiring. The color schematic I have is for a 710M, not a K. Most of the colors are different. But I have my trusty volt meter.
And I don't seem to have a junction box as depicted in several photos online.
There is a constant "on" black wire in the right rear wire ...

Still lots to do while waiting for brake parts to arrive.
Today, I installed and wired the headlights and got started trying to sort out the taillights.

pcolette wrote: Sun Mar 01, 2026 4:30 pm SAV still has them listed as part number SAV1438.

Paul

Outstanding, thank you very much.

Thank you. I have some on order in case the originals can't be sourced.
I would still like to find some of the military plugs to keep the sealed plugs.

I found this 24V breaker power box in my parts. Looks pretty handy, but I can't find any plugs online. EI and Swiss army vehicles don't have them listed. Does anyone have an idea where to look? Possibly aftermarket?

Thank you, Great advice.
I have learned a tremendous amount over the last week or so on the forum.
It's a terrific wealth of info.

Thanks for the info guys. I was afraid of spinning rivnuts. They are in the open, so easy to cut or drill the bolts out. Any idea what size they are for replacements?

I plan to use it as a SW desert exploring/touring machine. It does drive and doesn't make any expensive noise. The brakes and lockers need rebuilding. Lots to do, just putting it all together so far. We will see what happens as I continue with the project. I have been pretty heavy into old Land ...

I couldn't resist taking the time to mount my hood ornament using the factory holes.

Todays update.

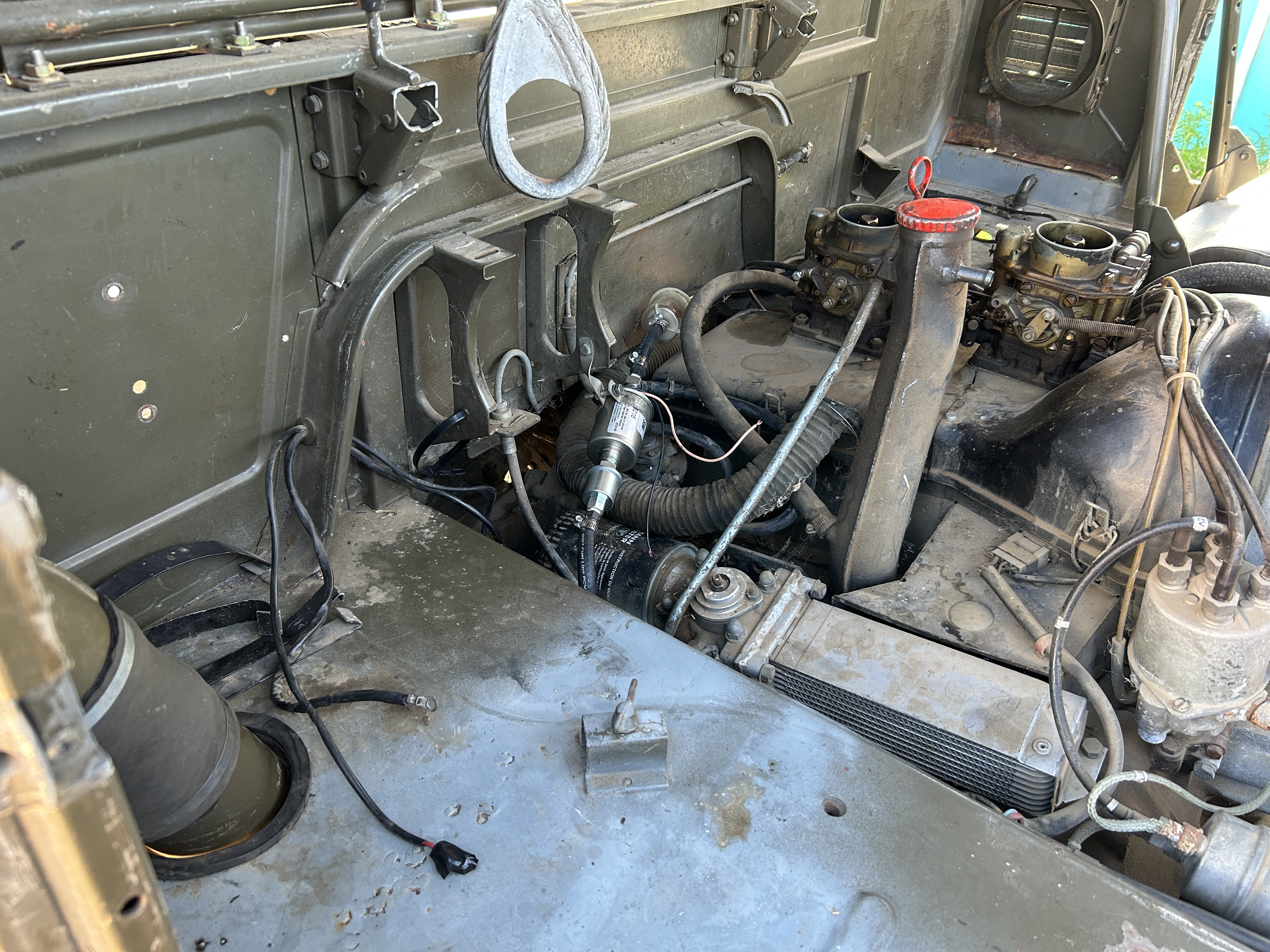

The pinz adventure continues. Fuel tank and electric fuel pump mounted/plumbed. next up is wiring up a 24/12V power supply and fuse block to power the 12V pump and any 12V accessories.
